Timpte Trailer Parts

Replacement 2 Speed Gear Box For Timpte Hopper Door Fits 2014 - Current

Unbranded

This is a replacement 2 speed gearbox for timpte hopper doors. This replaces timpte part number 035-53965. Replaces saf holland part number742119. Specs shaft length is 26-1/4" from back…

Replacement Low Torque Hopper Door Gear Racking For Timpte Split Tub

Unbranded

This gear racking fits timpte trailer trap doors for the 21' pup, 40' and 42'-2" split tub trailers. Racking comes welded to its mounting plate and will just need to be bolted onto the trailer.&…

Replacement Low Torque Shaft With Gears For Timpte 96" Hopper Doors (Pre-1994 & 1994-up AG

Unbranded

This is a complete shaft with two 11-tooth gears welded on for timpte low torque hopper doors. Please look closely to the measurements below. Timpte changed the doors several times over the years. Sha…

Replacement Low Torque Shaft With Gears For Timpte 96" Hopper Doors 1994-Current

Unbranded

This is a complete shaft with two 11-tooth gears welded on for timpte low torque hopper doors. Please look closely to the measurements below. Timpte changed the doors several times over the years. Sha…

Replacement Low Torque Shaft With Gears For Timpte 102" Hopper Doors 1994-Current

Unbranded

This is a complete shaft with two 11-tooth gears welded on for timpte low torque hopper doors. Please look closely to the measurements below. Timpte changed the doors several times over the years. Sha…

Replacement Lower Torque Gear Racking For Timpte 1983-1993

Unbranded

Replacement lower torque gear racking for timpte 1983-1993 specs rack width: 7/8" rack height: 7/8" rack length: 50"

Replacement Lower Torque Gear Racking For Timpte 1994-Current

Unbranded

Replacement lower torque gear racking for timpte 1994-current specs rack width: 3/4" rack height: 1-1/4" rack length: 43-1/4"

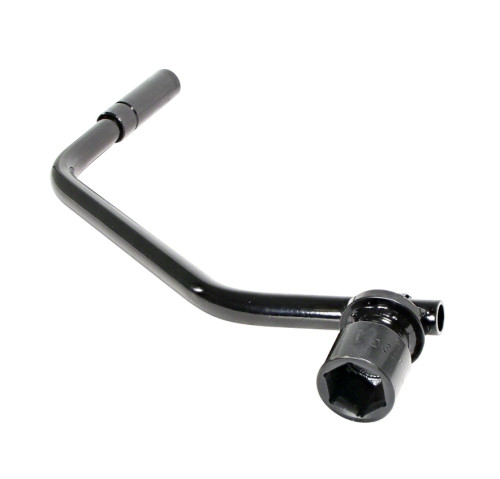

Replacement Crank Handle For Landing Gear & Trap Door For Timpte

Unbranded

Replacement crank handle for landing gear & trap door for timpte specs powder coated fits all models

Replacement Low Torque 1" Yoke With Keyway and Set Screws For 2010- Current

Unbranded

This u-joint assembly fits timpte trailer trap doors from 2010 until current production. 1" shaft size on each end with two locking bolts on each end. Replaces timpte part number:035-47442

Replacement Low Torque 1" Yoke With Keyway and Set Screws For 2010 and Prior

Unbranded

This u-joint assembly fits timpte trailer trap doors up until 2010 1" shaft size on each end with two set screws and keyway. Can be used in otherapplications. Replaces timpte part number:0…

Replacement Timpte 2 Speed Gear Box Hinge Strap Lock

Unbranded

This is a replacement bracket for the timpte low torque hopper door two bolt flange bearing. Constructed out of laser cut aluminum. This replaces timpte part number 040-59099 specs bolt spacing : 3.9…

Replacement Timpte 2 Bolt Flange Bearing Bracket for Low Torque Door

Unbranded

This is a replacement bracket for the timpte low torque hopper door two bolt flange bearing. Constructed out of laser cut aluminum. This replaces timpte part number 040-59099 specs bolt spacing : 3.9…

Replacement Timpte Low Torque Hopper Door 11 Tooth Trap Gear 1983-Current

Unbranded

This 11 tooth gear fits timpte trailer trap doors from 1983 until current production. Specs bore : 1" teeth : 11 tooth replaces timpte part number:035-06926

Crank Nut For Timpte Landing Gear & Trap Door

Unbranded

Description: replacement crank nut for operating the landing gear and trap door. basic specs: zinc plated 1-1/2" nut.

Replacement 1" Round Bore Timpte Flange Bearing For Lower Shaft & Upper Shank

Unbranded

Specs: bore : 1" bolt distance : 3.90" overall length : 5.12" overall width : 2.68" overall thickness : 1.41" replaces/interchanges ami: ucft205-16 browning: vf2s-216 dodge: 124171 dodg…

Replacement 5/8" Round Bore Timpte Low Torque Hopper Door Bearing

Specs : bore: 5/8" o.D : 1-3/8" or width: 7/16"

203KRR2, Bearing w/ 0.64" Round Bore & OD 1.57"

Specs : bore: .64" round o.D. 1.57" flat ir width: .72" or width: .47". fits john deere 750 grain drill (sn 5282 >), and all 1850, 1860 grain drills with 1'' x 10'' press wheels. Also…
