Description

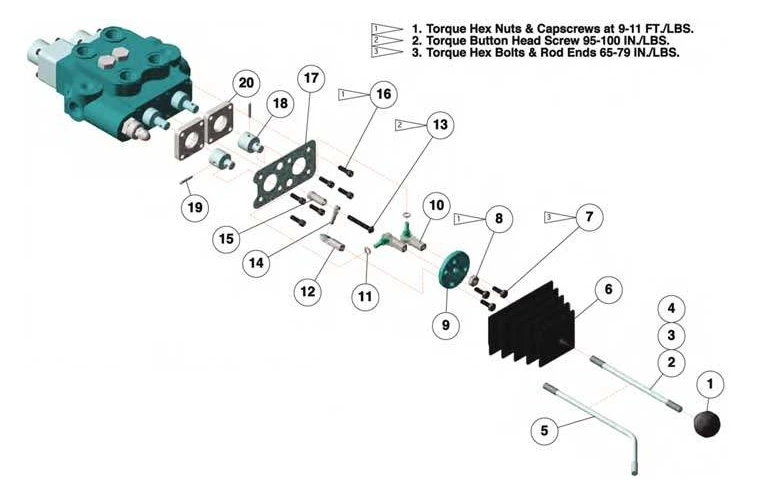

1V1485-02 Single Handle Joystick Style Actuator by Cross Manufacturing. Field install-able joystick kits. Bent Handle Option. Replacement joystick for Cross Valves: SBA-22, SBA-F2, SBA-22CC, SBA-F2CC.
ID# Part# Description
1 1A9320 Ball Knob
2 1V3549 Handle Rod 10" Long (Standard)
3 1V3582 Handle Rod 9" Long (Option)
4 1V3593 Handle Rod 7" Long (Option)
5 1V3560 Handle Rod Bent (Option)
6 1A9360 Rubber Boot - Trimmed
7 2A0078-406P Hex Bolt - 1/4-28 UNF x 3/4"
8 2A0235-6 Hex Lock Nut - 318-16 UNC
9 1V3546P Handle Plate
10 1A9347 Rod End with 1/4-28 UNF Stud
11 2A0736-104 Lock Washer
12 1A9348 Rod End
13 1A9343 Button Head Cap Screw
14 1V3558 Pivot Axle
15 1V3587 Long Pivot Saddle
16 2A0079-406 Machine Screw 1/4-20 UNC x 1"
17 1V3559 Boot Mounting Plate
18 1V3563 Spool Adaptor
19 2A0493-616 Roll Pin
