Description

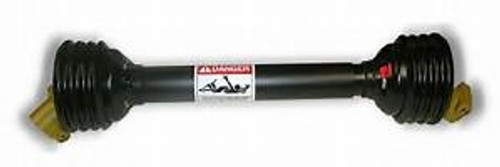

The Weasler high performance PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries. Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
Performance Benefits
Design adjust-ability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
Design Features
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, cast iron collars, through-bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, manufactured with high quality steel for increased strength. Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Cross Reference:
111111147, 14006135, 266014006135, 971-14006135, A-CS12911, CS12911, PM1400-6135
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 1.37 inches | 35 mm |
| Bore 2 | 1 3/8-6 SPLINE | |
| Compressed (Closed) Length | 35.00 inches | 889 mm |
| Compressed Overall Length | 42.08 inches | 1069 mm |
| Connection 1 | QUICK DISCONNECT | |
| Connection 2 | QUICK DISCONNECT | |
| Extended Length | 43.11 inches | 1095 mm |
| Extended Overall Length | 50.11 inches | 1273 mm |
| HP@1000RPM | 23 HP | 17 kilowatts |
| HP@540RPM | 15 HP | 11 kilowatts |
| Length | 42.08 inches | 1069 mm |
| Outside Diameter | 6.00 inches | 152 mm |
| Shipping Dimensions | 42.086" L × 6" H × 6" W | 107cm L × 15cm H × 15cm W |
| Shipping Volume | 1515.10 in3 | 24828 cm3 |
| Shipping Weight | 14.00 pounds | 6 kilograms |
| Weight | 14.00 pounds | 6 kilograms |
