Description

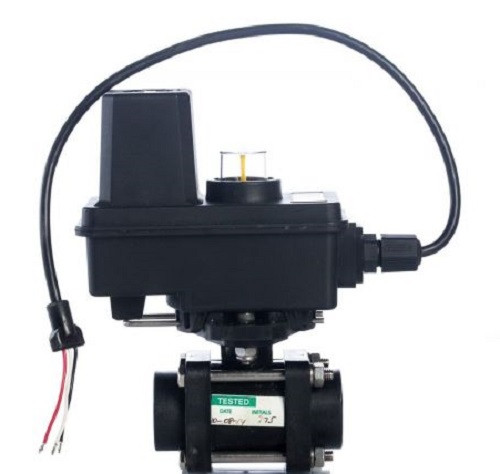

REGULATING MOTORS
- Choosing the proper regulating motor speed is important to maximizing the sprayer’s performance. Three speeds are offered at this time: 1 RPM, 3 RPM and 6 RPM. The 1 RPM speed is used mostly in manual systems; it is too slow for automated rate control. The other two speeds are used in automated systems. The 3 RPM is the most popular and opens the valve to the maximum flow in about 6 seconds for the RL valve and about 10 seconds for the PR valves. The 6 RPM motor cuts those times in half
Standard Features:
- Compatible with 346B, 356, and 490 Series electric ball valves
- Positively switched, 0.6 seconds to close
- Durable, double-wall gearbox
- Internal, automatic-reset fuse
- Built-in visual indicator
- Easy replacement and installation
- IP67 waterproof rated
Technical Specs:
- Type: EC
- Enclosure: IP67 waterproof
- Volts: 12 VDC
- RPM: 3 RPM
- Amp Draw: 0.15
